Critical applications call for the enhanced features of the ADX series. With form factors including a frequency diversity handheld and the first micro-bodypack with an internal self-tuning antenna, these ShowLink™-enabled transmitters offer real-time remote control plus automatic interference detection and avoidance.
ADX Series Transmitters
ADX1M Micro-Bodypack Transmitter
Incredibly small, smooth bodypack with internal antenna for better concealment and more comfortable wear in theater productions and other applications requiring discreet placement.
ADX1M Micro-Bodypack Transmitter
All ADX transmitters set the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

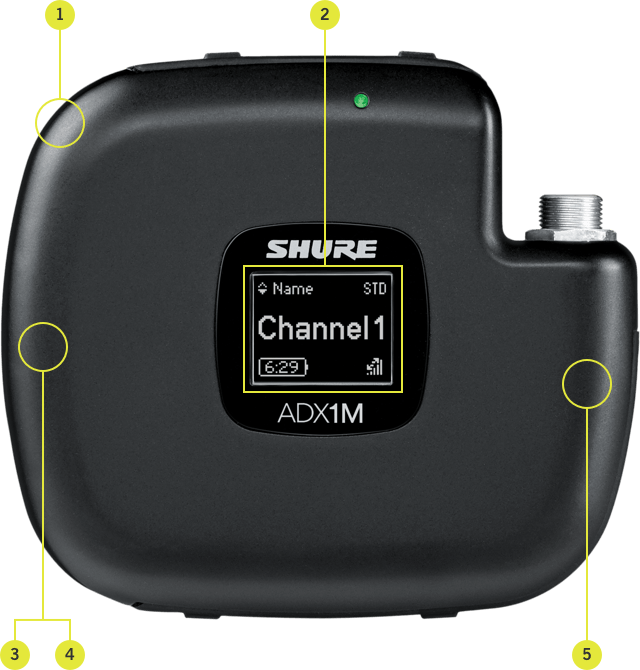

1Small and streamlined design with internal antenna for better concealment and wear (68mm × 60mm × 18mm)
2High-contrast OLED display
3Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
4Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
5Ultem®PEI construction for heat resistance and durability

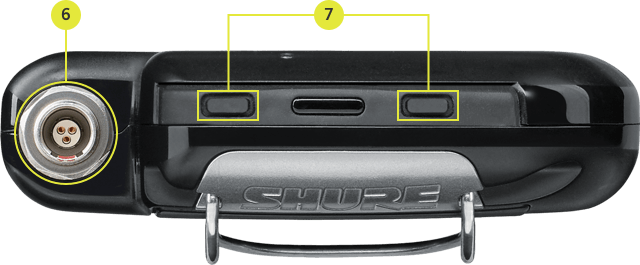

6Recessed LEMO connector
7Membrane-style buttons and LEMO connection for protection against sweat and moisture ingress

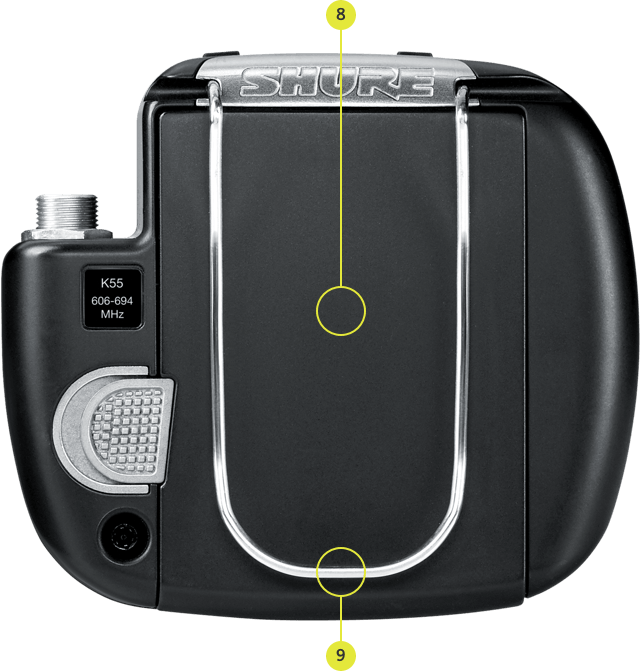

8Up to 7 hours of runtime with SB910M rechargeable batteries
9Detachable belt clip
ADX1 Bodypack Transmitter
A slimmer, lighter bodypack with powerful features and options.
ADX2 & ADX2FD Handheld Transmitters
A sleek design in black or nickel. Frequency diversity option available.
ADX1 Bodypack Transmitter
ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Removable antenna and fully concealed buttons and switch
Two connector options: TA4 and LEMO3
Advanced control menu with powerful features
Durable, moisture-resistant, lightweight metal case
Up to 10 hours of runtime with SB910 rechargeable batteries
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
External contacts for docked charging
ADX2 & ADX2FD Handheld Transmitters
ADX2 and ADX2FD, like all ADX transmitters, set the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Available with these cartridge options:
KSM8
KSM9, KSM9HS
BETA®87A, BETA®87C
BETA 58A®
SM58®
Sleek design with powerful features
Durable, moisture-resistant, lightweight metal case
Up to 9 hours of runtime with SB920 rechargeable batteries (ADX2FD–Up to 6.5 hours)
Available in black or nickel finish
External contacts for docked charging with optional fully covered radome
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
Ability to transmit RF signal on two discrete carriers
Optional 50mW High Power mode for driving increased power on a single frequency
ADX2FD Handheld Transmitter Only
Axient Digital Receivers
RIGHT-SIZED RECEIVER SOLUTIONS.
Dual and quad receiver options open the gateway to the full range of features, from high-performance RF and transparent digital audio to software control. With Quadversity™, the AD4Q can assign four antennas to a single channel for greater coverage and signal quality.
AD4D Two-Channel Digital Receiver & AD4Q Four-Channel Digital Receiver
Compatible with all AD and ADX transmitters.
Wide tuning range up to 184 MHz
True digital diversity reception per channel for drop-out resistance
Networked control with Wireless Workbench software and ShurePlus Channels app
DC module version available to support redundant power
Quadversity mode for extended antenna coverage and improved RF signal-to-noise (AD4Q only)
1Front panel headphone jack enables Dante Cue and Dante Browse monitoring
2Locking AC connectors
3Configurable Ethernet switch for redundant Dante or AES67 digital output
4AES3 output
5Switchable XLR and AES3 outputs
6Channel Quality meter displays RF signal-to-noise
7Cascade antenna ports can be switched to Quadversity inputs
Command & Control Hardware
AD610 Diversity ShowLink™ Access Point
ShowLink technology offers unprecedented remote control and monitoring for easy coordination of clean, usable frequencies no matter what kind of RF environment you face.
AD610 Diversity ShowLink™ Access Point
The AD610 provides a wireless network connection between all linked transmitters and receivers.
Enables real-time wireless remote control of up to 24 transmitters per access point
Offers ability to adjust gain, change frequencies, mute signals, and more
True diversity antenna scheme maintains a robust link in the 2.4GHz (IEEE 802.15.4) frequency range
Automatic channel selection scans the 2.4 GHz range for the best channel
Automatic frequency agility moves the network to the best available channel if signal degrades
Compatible with Axient Digital ADX series and Axient analog systems
AXT600 Spectrum Manager
Single rack unit delivers wide-band UHF spectrum scanning and analysis, plus compatible frequency coordination.
AXT600 Spectrum Manager
Single rack unit delivers wide-band UHF spectrum scanning and analysis, plus compatible frequency coordination.
Scans and analyzes the global UHF spectrum (470–952 MHz) in approximately one minute
Compatible with Axient Digital and other Shure networked wireless systems
Continuously monitors, evaluates, and displays backup frequencies in real time
Networked Rechargeability
SBRC RACKMOUNT CHARGING STATION
A range of networked battery solutions features the rack-mounted SBRC and also includes a series of units that support individual and docked charging.
SBRC Rackmount Charging Station
Compatible with AD and ADX series transmitter batteries
Remote monitoring via Shure Wireless Workbench® software
Front-panel display for battery parameters including time-to-full in hours and minutes, and percent-of-capacity
Accomodates eight Li-ion batteries in a single rack space
Additional Charging Modules
SBC-AX
Charging Module for SB900A
SBM910
Charging Module for SB910
SBM920
Charging Module for SB920
SBM910M
Charging Module for SB910M
Additional Docking Chargers
SBC200 2-Bay Dock Charger
SB900A batteries (AD1 and AD2)
SBC220 2-Bay Dock Charger
SB900A batteries (AD1 and AD2)
Remote monitoring via Shure Wireless Workbench
SBC240 2-Bay Dock Charger
SB910 batteries (ADX1)
SB920 batteries (ADX2 and ADX2FD)
Remote monitoring via Shure Wireless Workbench
SBC800 8-Bay Charger
SB900A batteries (AD1 and AD2)
SBC840 8-Bay Charger
SB910 batteries (ADX1)
SB920 batteries (ADX2 and ADX2FD)
Remote monitoring via Shure Wireless Workbench
SBC840M 8-Bay Charger
SB910M batteries (ADX1M)
Remote monitoring via Shure Wireless Workbench
Other Accessories
Battery sleds
Radome covers
Locking power cords
ShowLink talk switches for handhelds and bodypacks
Compare
Axient Digital with AD Series Transmitters
Axient Digital with ADX Series Transmitters
Axient (Analog)
ULX-D™
UHF-R®
System Technology
Digital
Digital
Analog
Digital
Analog
Receiver Formats
Dual / Quad
Dual / Quad
Dual
Single / Dual / Quad
Single / Dual
Maximum Transmitter Tuning Range
184 MHz
184 MHz
80 MHz
64 MHz
80 MHz
Transmission Modes
Standard, High Density
Standard, High Density
Standard
Standard, High Density
Standard
Channel Quality Metrics
No
No
No
Antenna Diversity
True Diversity
True Diversity
True Diversity
Antenna Switching Diversity
True Diversity
Quadversity™
No
No
No
Latency (Transmitter to Receiver Analog Out)
Standard mode: 2ms
High Density Mode: 2.9ms
Standard mode: 2ms
High Density Mode: 2.9ms
<1ms
<2.9ms
Near 0ms
Transmitter Frequency Diversity
No
Transmitter Remote Control
No
Monitor & Control up to 24 transmitters per AD610 ShowLink access point
Monitor & Control up to 24 transmitters per AD610 ShowLink access point
No
No
Micro-bodypack Transmitter
No
ADX1M
UR1M
No
UR1M
Channels per TV Band
Standard mode:
17 ch / 6 MHz, 23 ch / 8 MHz
High Density Mode:
47 ch / 6 MHz, 63 ch / 8 MHz
Standard mode:
17 ch / 6 MHz, 23 ch / 8 MHz
High Density Mode:
47 ch / 6 MHz, 63 ch / 8 MHz
15 ch / 6 MHz
19 ch / 8 MHz
Standard mode:
17 ch / 6 MHz, 23 ch / 8 MHz
High Density Mode:
47 ch / 6 MHz, 63 ch / 8 MHz
10 ch / 6 MHz
13 ch / 8 MHz
Interference Detection
No
Automatic Interference Avoidance
No
No
No
Dynamic Range
Analog output (XLR): >120 dB, A-weighted, system gain @ +10
Digital output (Dante, AES3, AES67): >125 dB, A-weighted
Analog output (XLR): >120 dB, A-weighted, system gain @ +10
Digital output (Dante, AES3, AES67): >125 dB, A-weighted
